Wet Filter

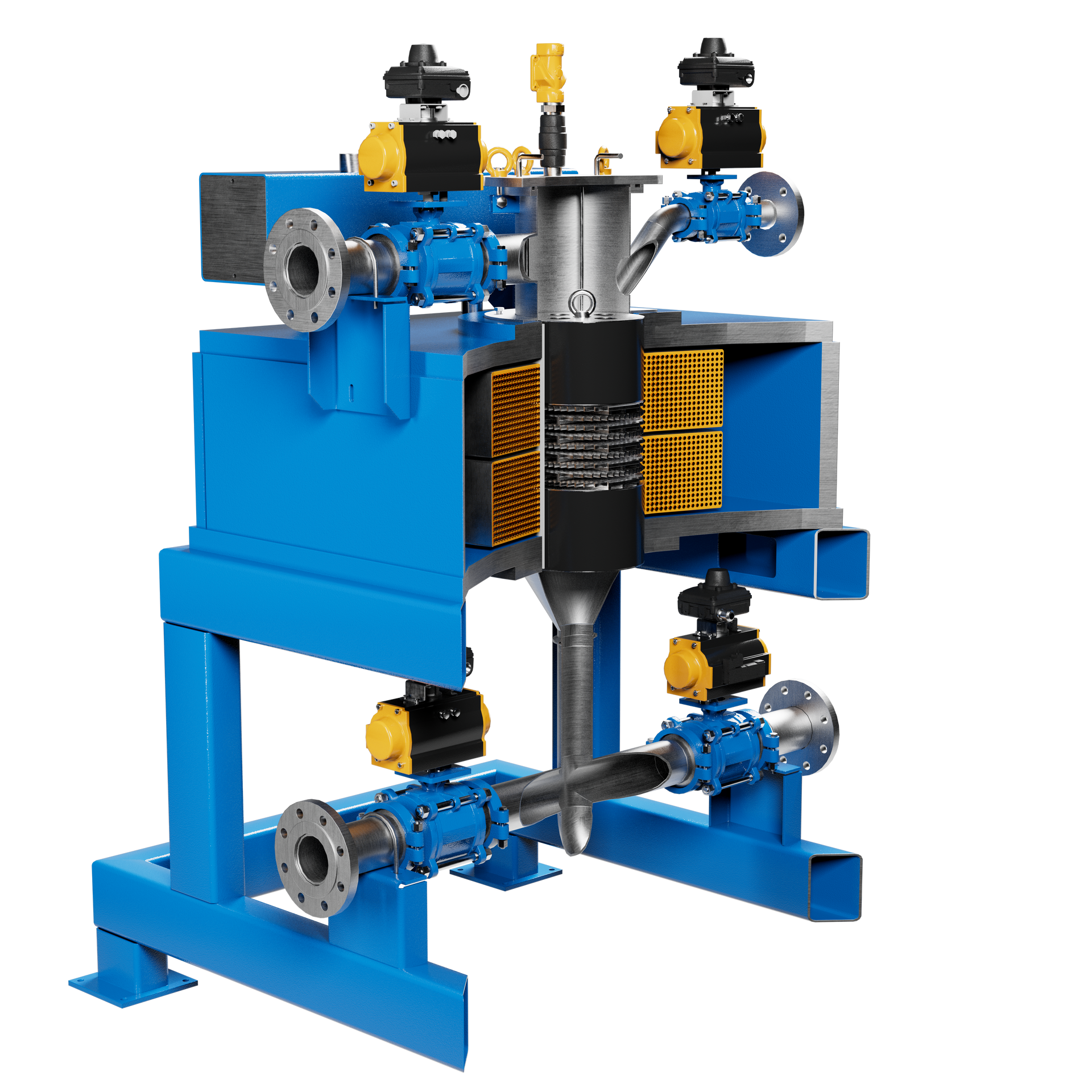

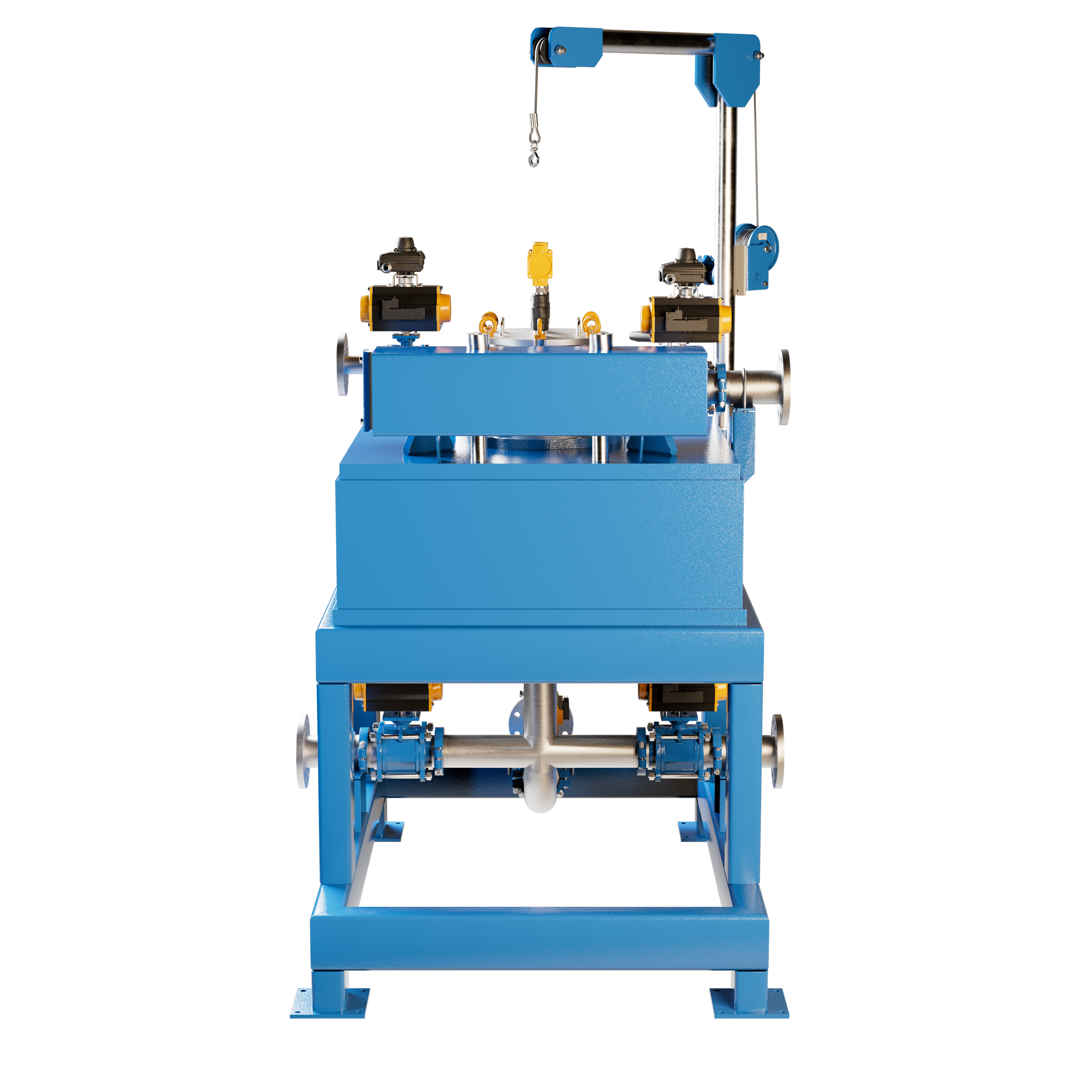

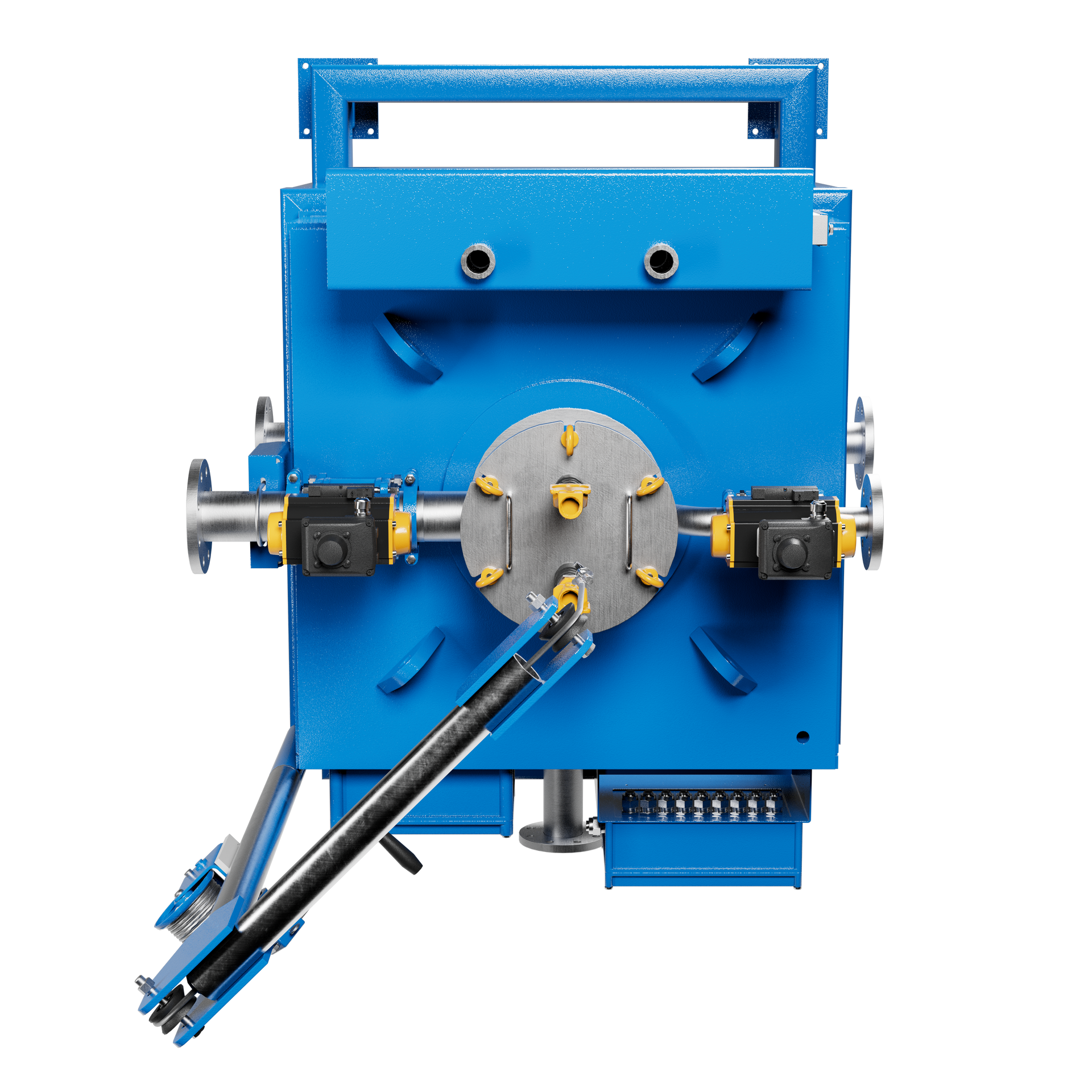

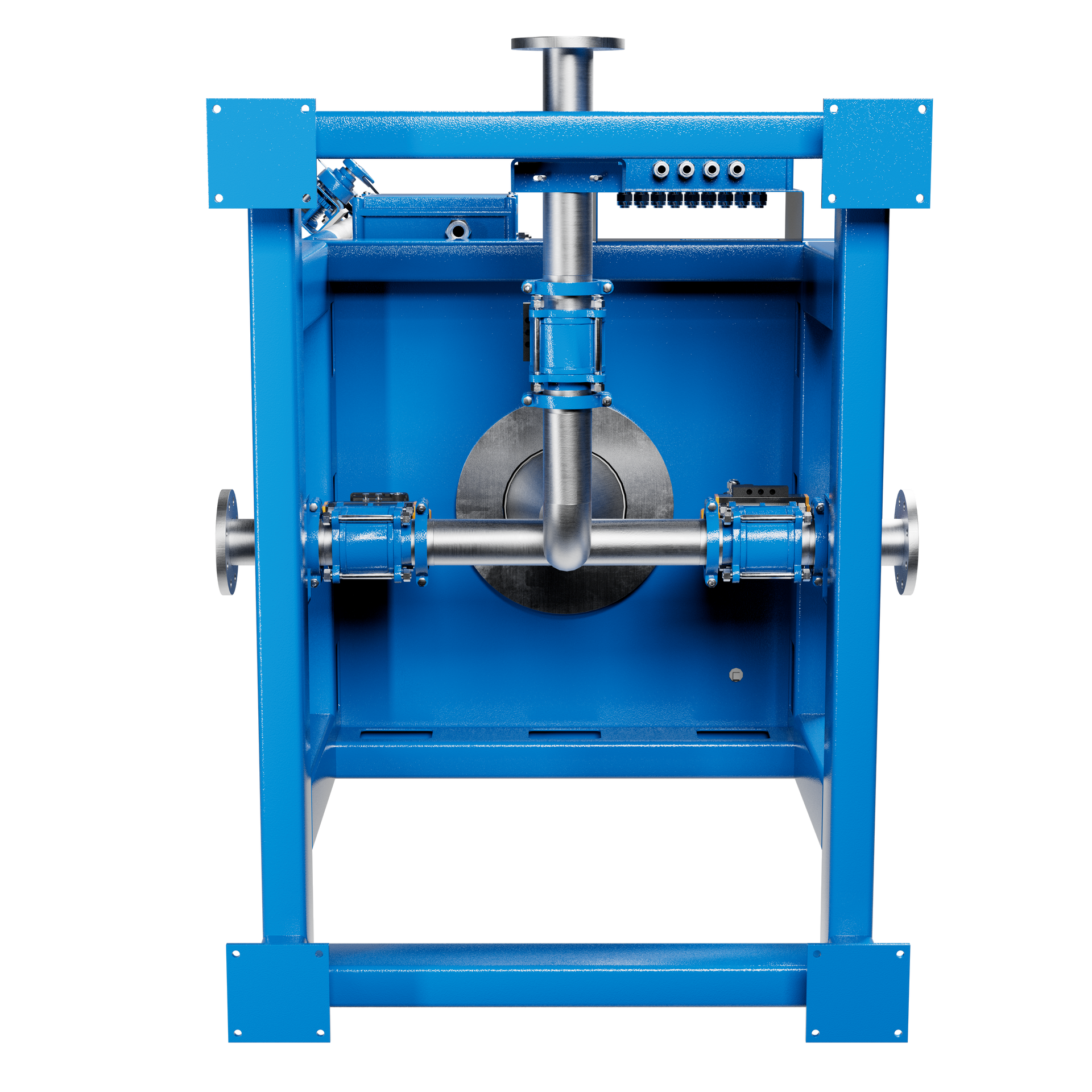

Electromagnetic Wet Filter

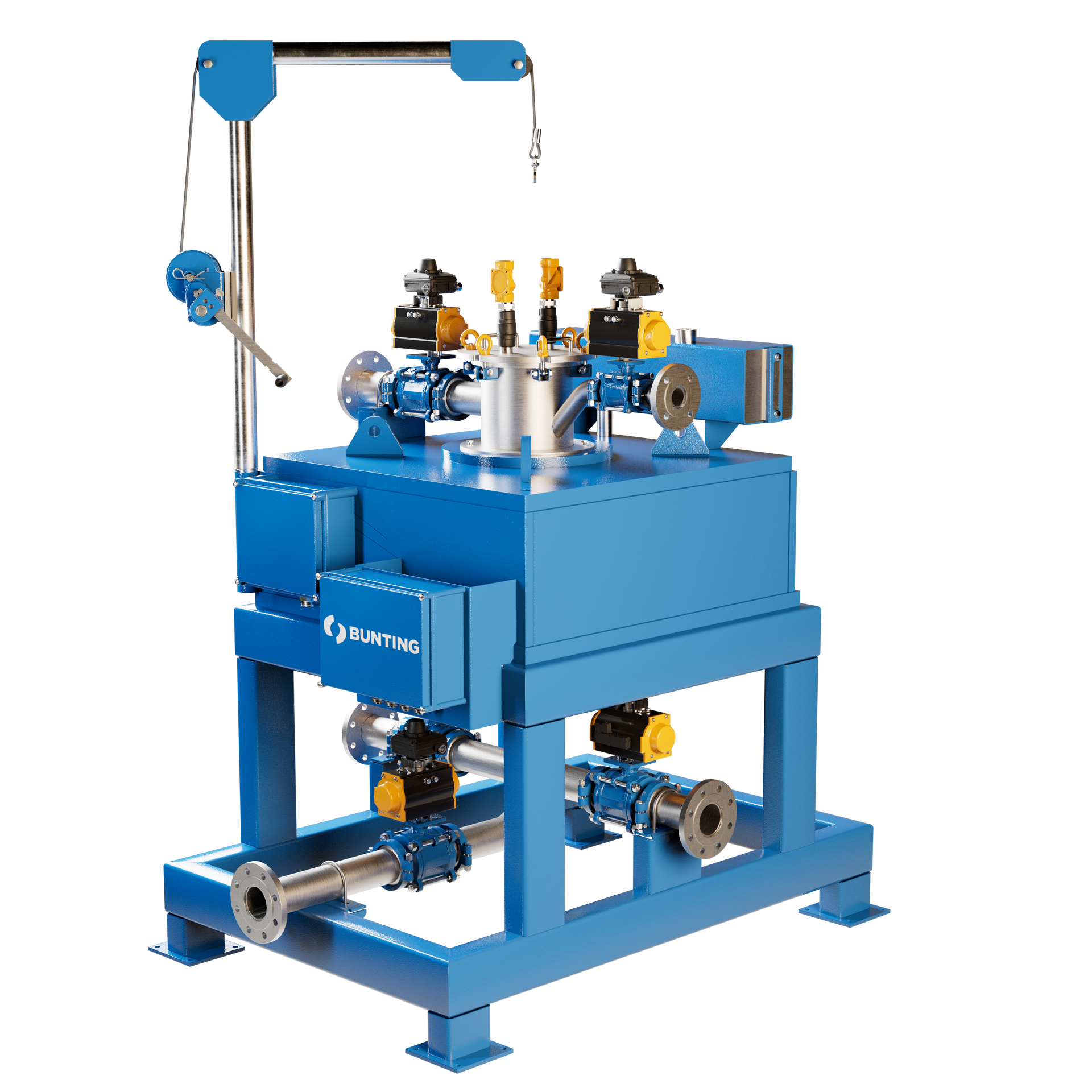

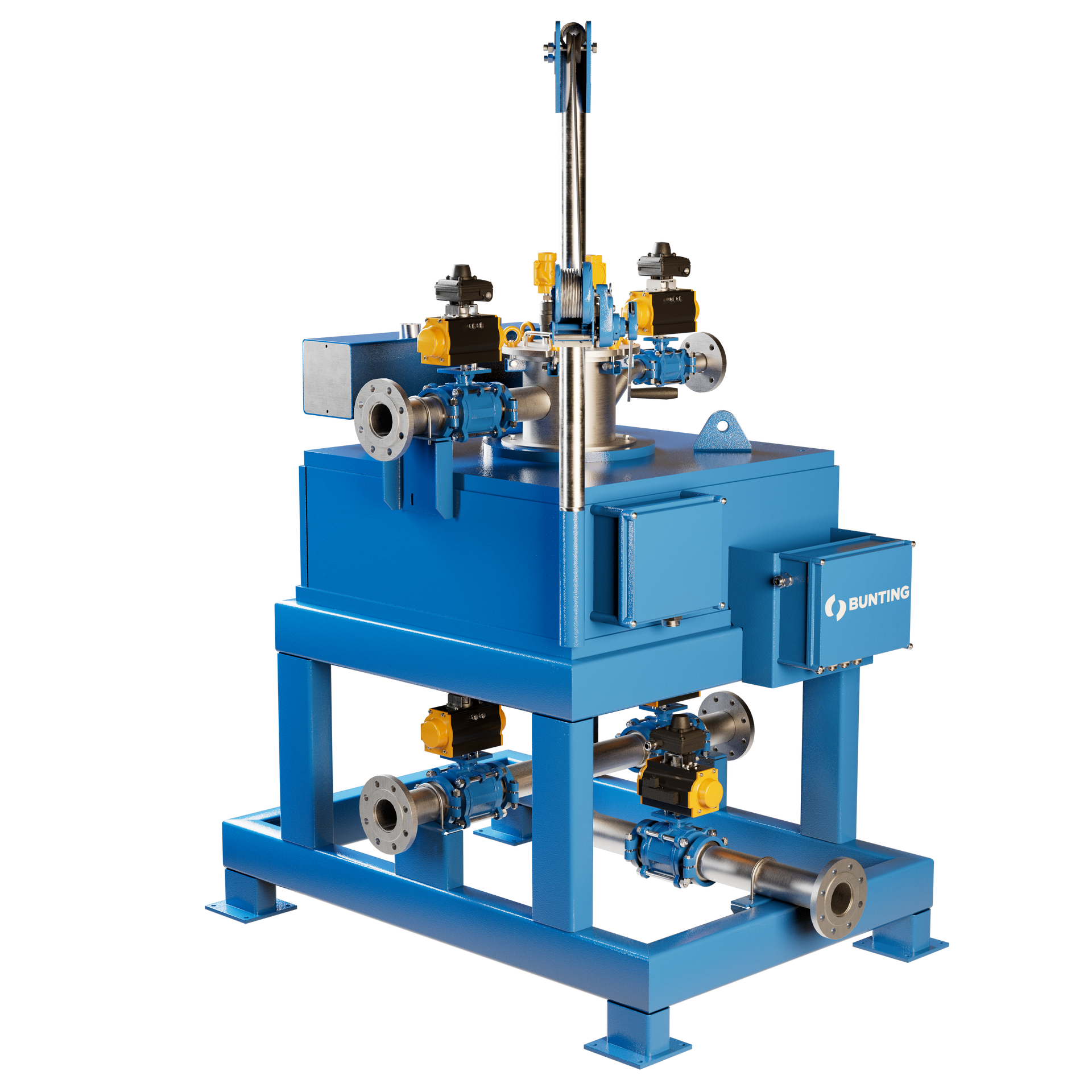

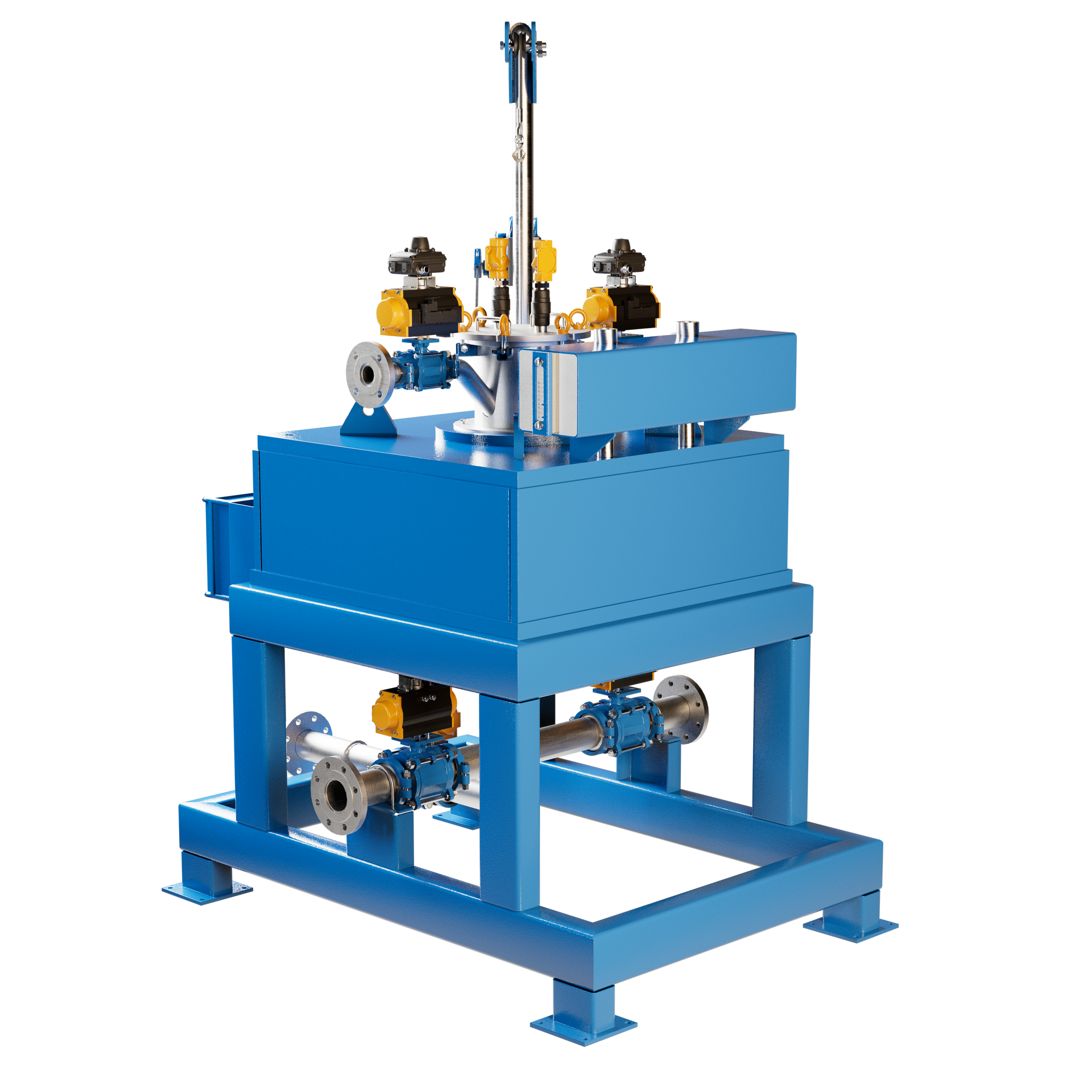

Electromagnetic Wet Filter - Angled

Electromagnetic Filter

Wet

INDUSTRIES Ceramics, Battery, Recycling, Mineral Processing
MAGNET Electromagnet
STRENGTH Up to 10,000 gauss (background field)
MATERIAL Slurries and Liquids
CAPACTIY 6, 15, 21, 28, 37, 58, 72 (m3/hr)
SEPARATES Fine Iron, Paramagnetic Minerals
CONTROLS Siemens S7-1200 PLC (options available)

OPTIONS/FEATURES

High Intensity Electromagnetic Filter Animation of Crane

Easy Maintenance

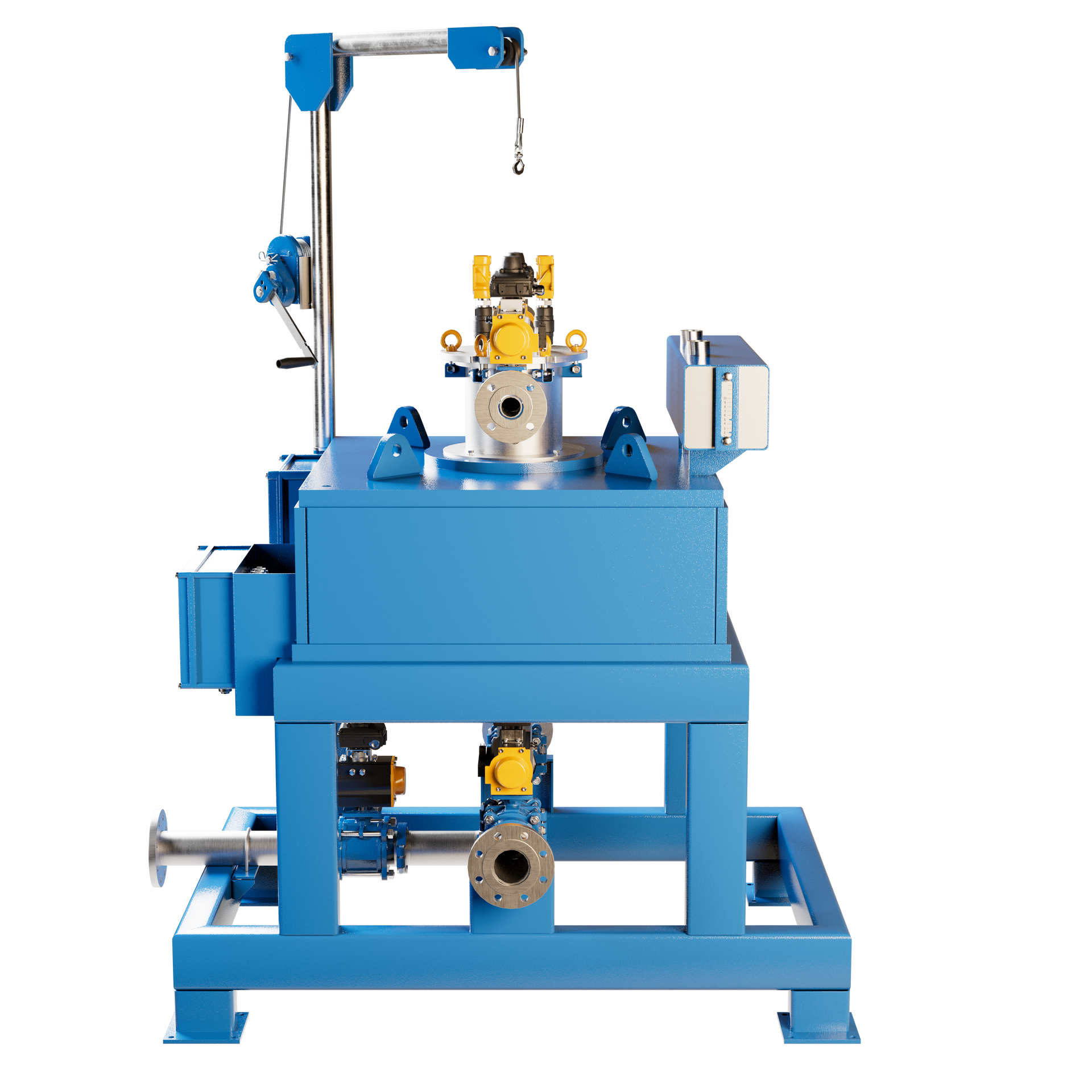

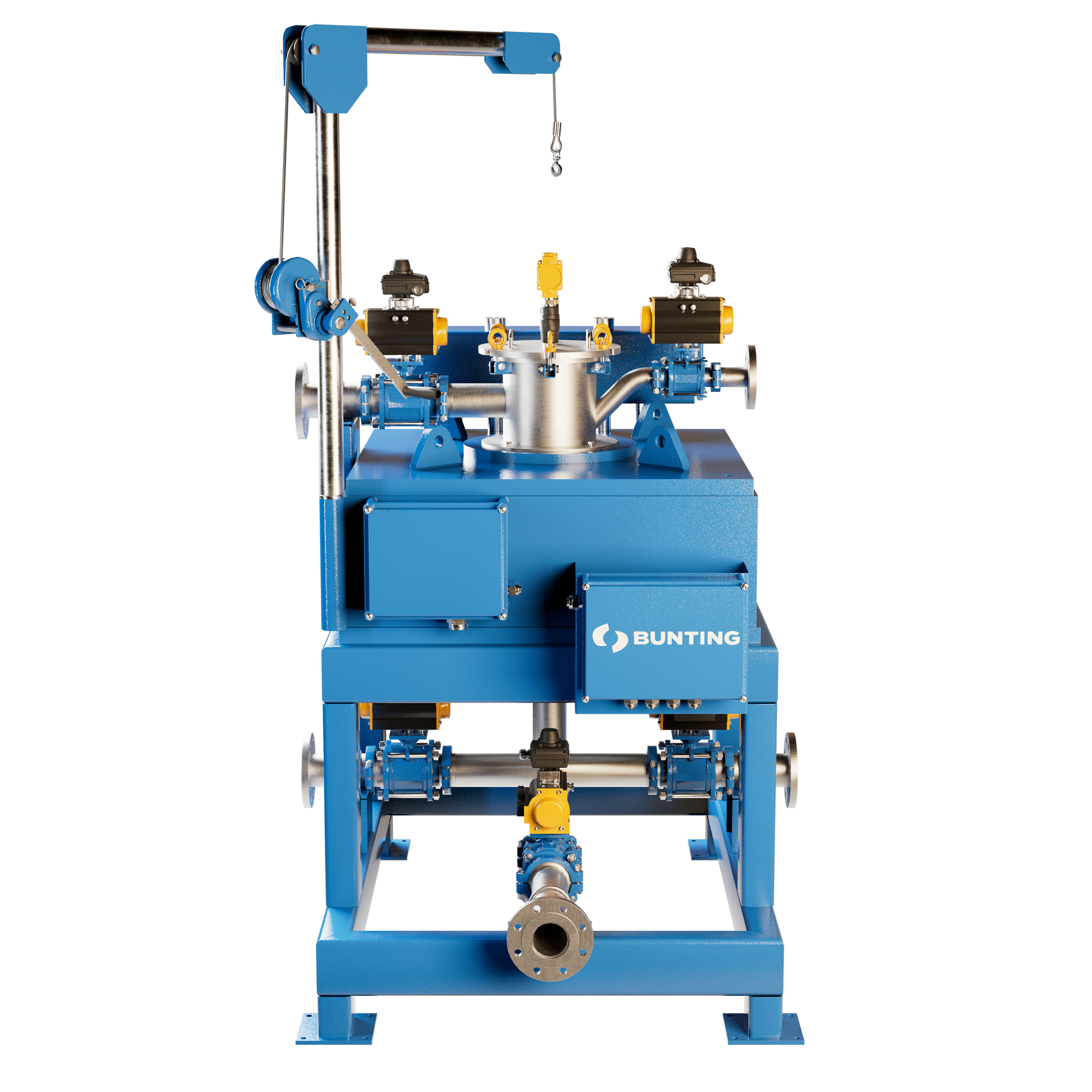

Includes a removable jib crane for easy removal of the top pole and matrix assembly for maintenance and cleanings.

High Intensity Electromagnetic Filter Animation of Cleaning

Back Flush Cleaning

Automated back flush cleaning cycle to clean captured contaminants off the matrix.

ANIMATIONS

Cleaning

Full Screen Option Available

Electromagnetic Removal

Full Screen Option Available

High Magnetic Field Strength: Offers a range of background magnetic field strengths from 3,500 to 10,000 gauss for effective separation of fine iron and paramagnetic minerals from liquids and slurries.


Applications: Used to remove fine iron and paramagnetic minerals from non-metallic mineral slurries.


Efficient Separation: Higher separation efficiency than permanent magnetic separators by generating significant background magnetic field strength, and a high-magnetic field gradient on the matrix surface.


Back Flush Cleaning: Automated back flush cleaning cycle to clean captured contaminants off the matrix. Cycle times can be adjusted via the HMI to suit application needs.


Energy Efficiency: Utilizes highly efficient computer-designed coils paired with an air-over oil heat exchange to maintain optimal operating temperature.


Easy Maintenance: Includes a removable job crane for easy removal of the top pole and matrix assembly for maintenance and cleanings. This minimizes downtime and needs for additional infrastructure.


Controlled Operation: Can be fully automated using a control system with a Siemens S7-1200 PLC and HMI for managing cleaning frequency and parameters.


Valve Configurations: Available in 4-valve to 8-valve configurations to suit different applications.


Testing Facilities: Bunting offers controlled tests on laboratory-sized filters to confirm separation capabilities.



3,500 gauss — separation of free iron

5,000 gauss — separation of finer free iron, paramagnetic minerals, and stainless steel abrasion.

7,000 gauss — separation of fine iron and paramagnetic minerals

10,000 gauss — separation of very fine iron and paramagnetic minerals.



Download Drawings

  • Benefits

    High Magnetic Field Strength: Offers a range of background magnetic field strengths from 3,500 to 10,000 gauss for effective separation of fine iron and paramagnetic minerals from liquids and slurries.


    Applications: Used to remove fine iron and paramagnetic minerals from non-metallic mineral slurries.


    Efficient Separation: Higher separation efficiency than permanent magnetic separators by generating significant background magnetic field strength, and a high-magnetic field gradient on the matrix surface.


    Back Flush Cleaning: Automated back flush cleaning cycle to clean captured contaminants off the matrix. Cycle times can be adjusted via the HMI to suit application needs.


    Energy Efficiency: Utilizes highly efficient computer-designed coils paired with an air-over oil heat exchange to maintain optimal operating temperature.


    Easy Maintenance: Includes a removable job crane for easy removal of the top pole and matrix assembly for maintenance and cleanings. This minimizes downtime and needs for additional infrastructure.


    Controlled Operation: Can be fully automated using a control system with a Siemens S7-1200 PLC and HMI for managing cleaning frequency and parameters.


    Valve Configurations: Available in 4-valve to 8-valve configurations to suit different applications.


    Testing Facilities: Bunting offers controlled tests on laboratory-sized filters to confirm separation capabilities.

  • Gauss

    3,500 gauss — separation of free iron

    5,000 gauss — separation of finer free iron, paramagnetic minerals, and stainless steel abrasion.

    7,000 gauss — separation of fine iron and paramagnetic minerals

    10,000 gauss — separation of very fine iron and paramagnetic minerals.

  • Capacity


  • Dimensional Info


    Download Drawings
Electromagnetic Wet Filter Infographics

ABOUT

Electromagnetic Filters: Powerful Magnetic Separation Technology


Electromagnetic filters provide highly effective removal of fine iron and paramagnetic minerals from ceramic slips, glazes, and industrial mineral slurries. Key features include:


  • Generate strong magnetic fields up to 10,000 Gauss for superior separation efficiency
  • Remove problematic magnetic particles as small as 0-500 microns
  • Automated cleaning cycles for continuous processing
  • Available in 3,500 to 10,000 Gauss models for different applications

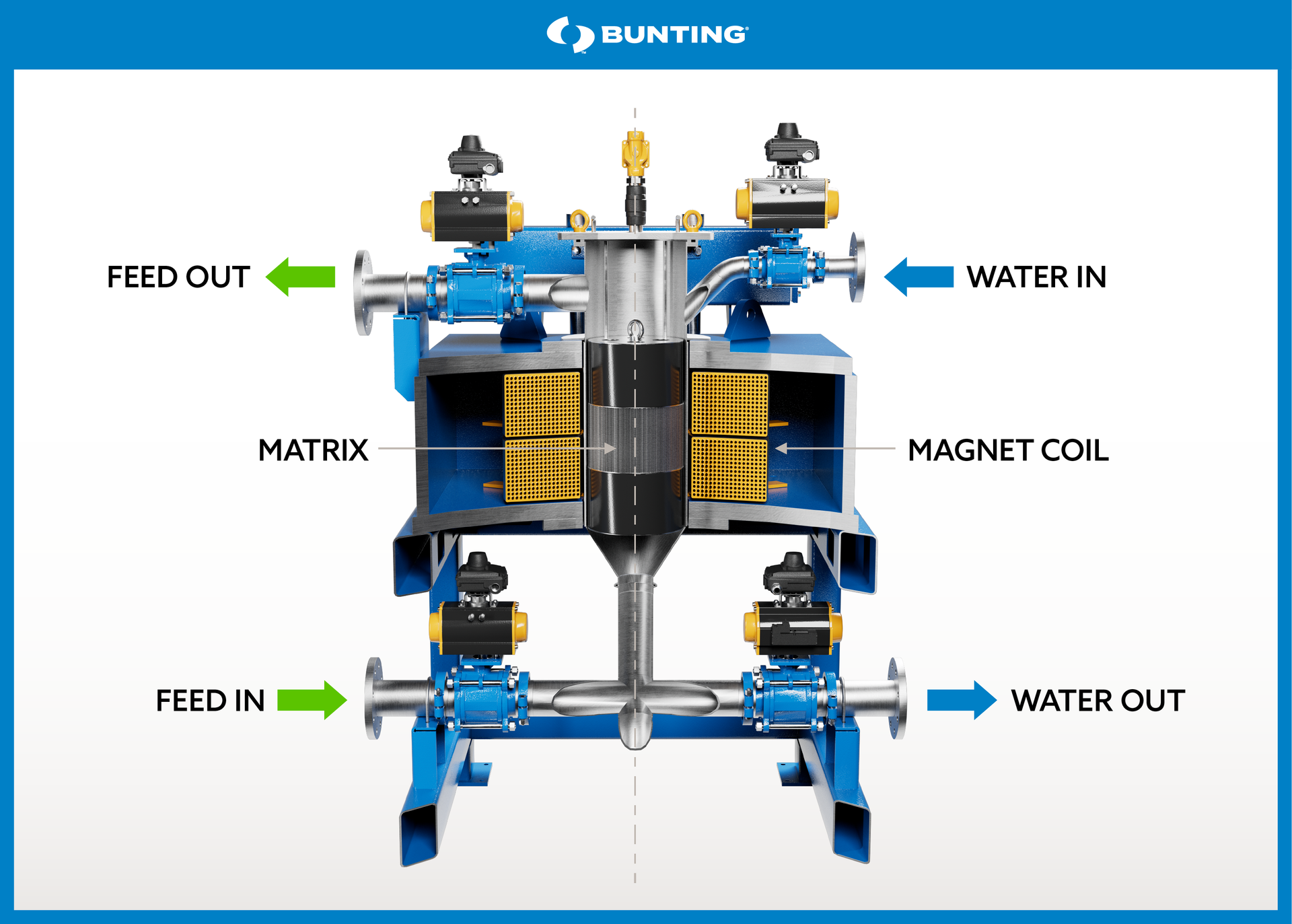

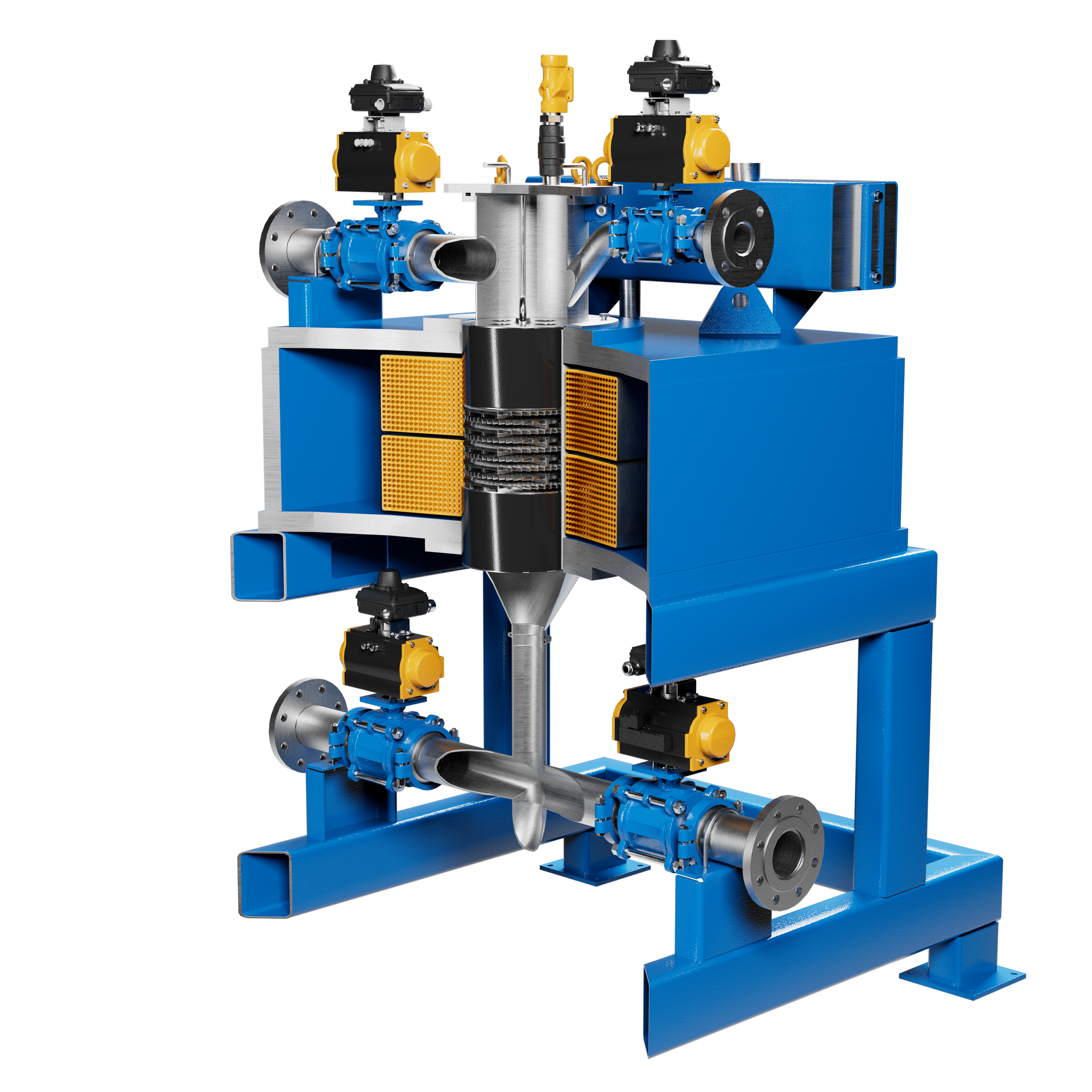

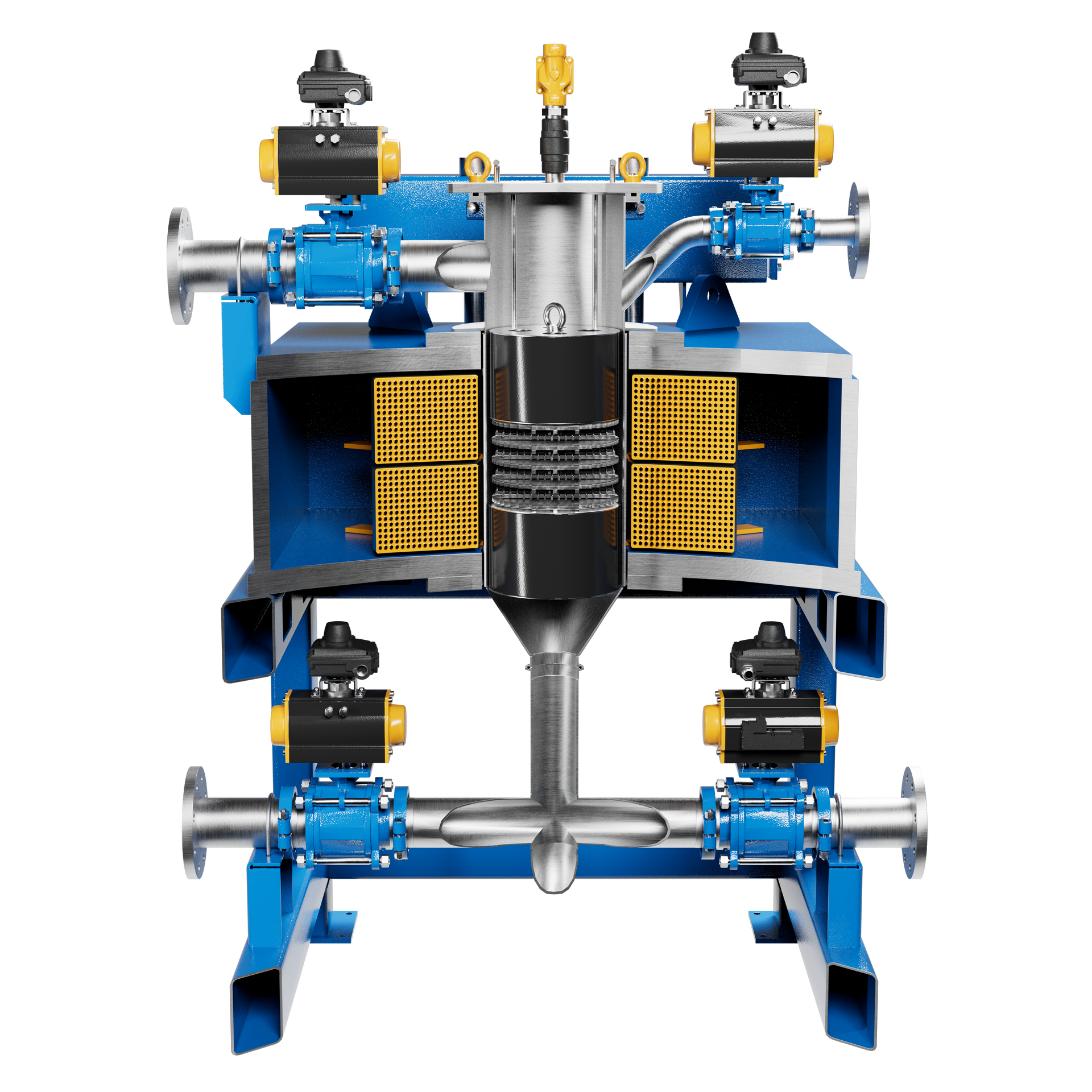

How Electromagnetic Filters Work


  • Electromagnetic coil creates intense magnetic field in stainless steel matrix
  • Slurry pumped through matrix, magnetic particles attracted and captured
  • Periodic cleaning cycles flush out captured particles
  • Can be set up in pairs for non-stop operation


Key Benefits


  • More effective than permanent magnetic separators
  • Removes very fine iron and paramagnetic minerals
  • Improves purity of ceramic materials and industrial minerals
  • Automated operation with programmable controls


Common Applications


  • Cleaning ceramic glazes and slips
  • Purifying mineral slurries like silica sand, feldspar, kaolin, etc.
  • Removing contaminants from ball clay, calcium carbonate, talc


For industries requiring high-purity materials, electromagnetic filters offer powerful magnetic separation capabilities to remove even the finest magnetic contaminants. Their adjustable field strength and automated operation make them ideal for a wide range of ceramic and mineral processing applications.
