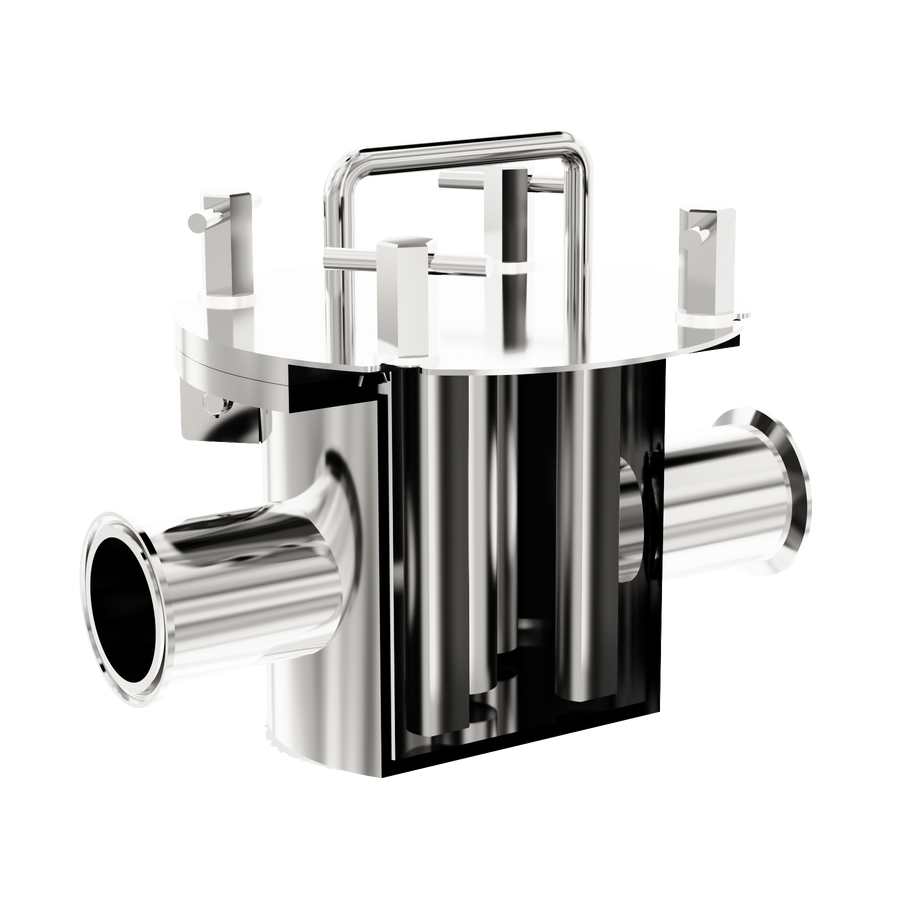

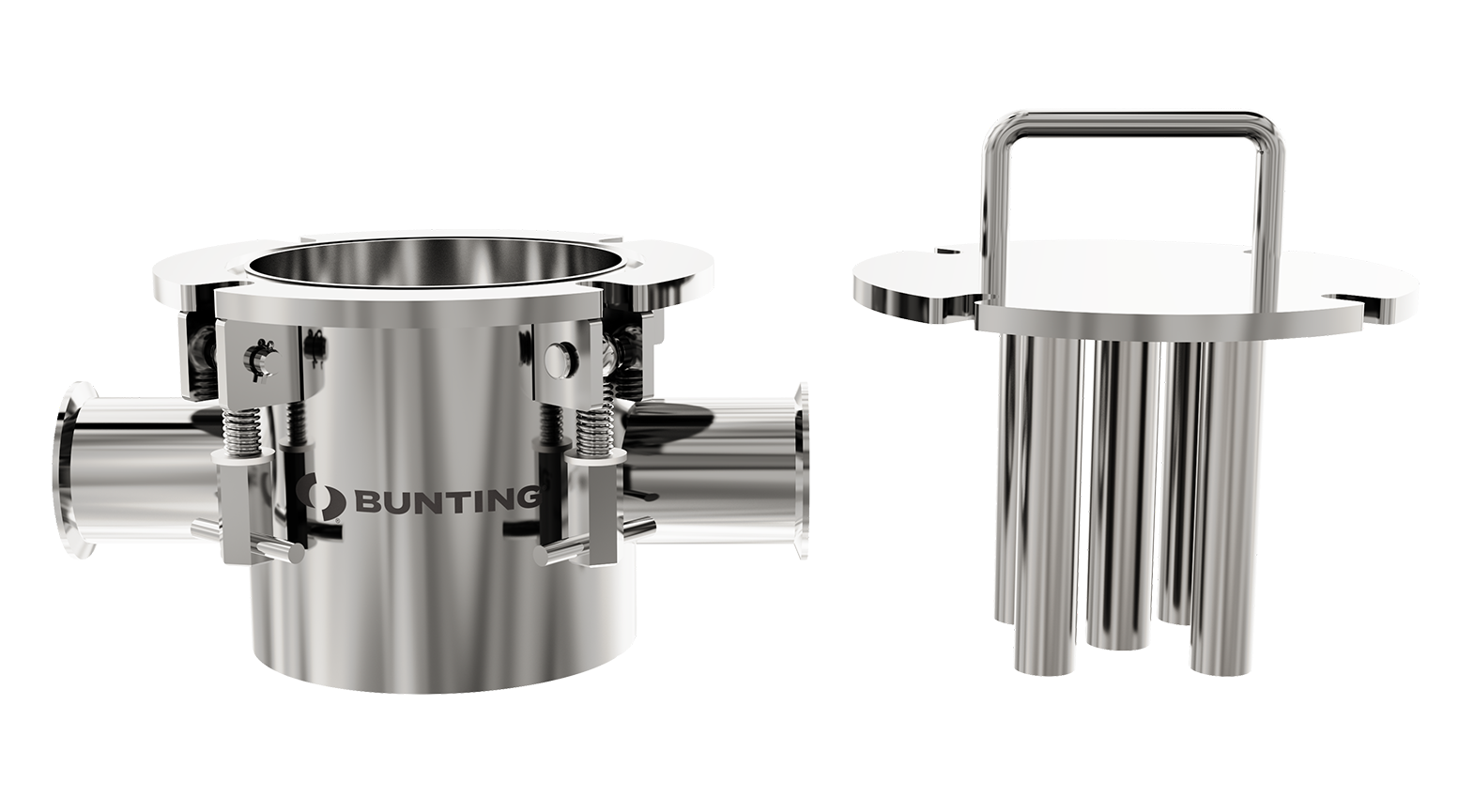

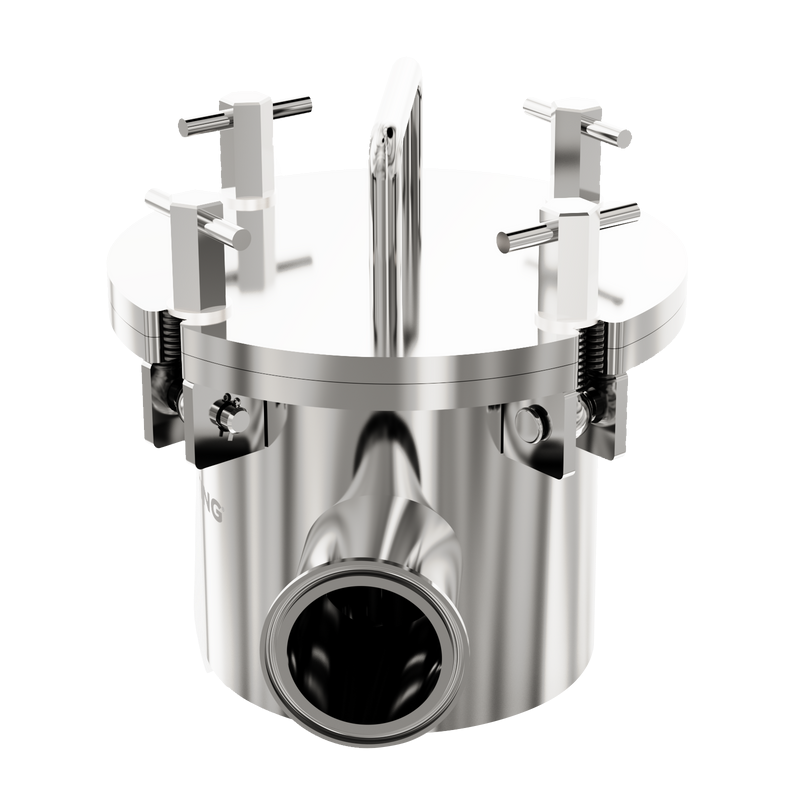

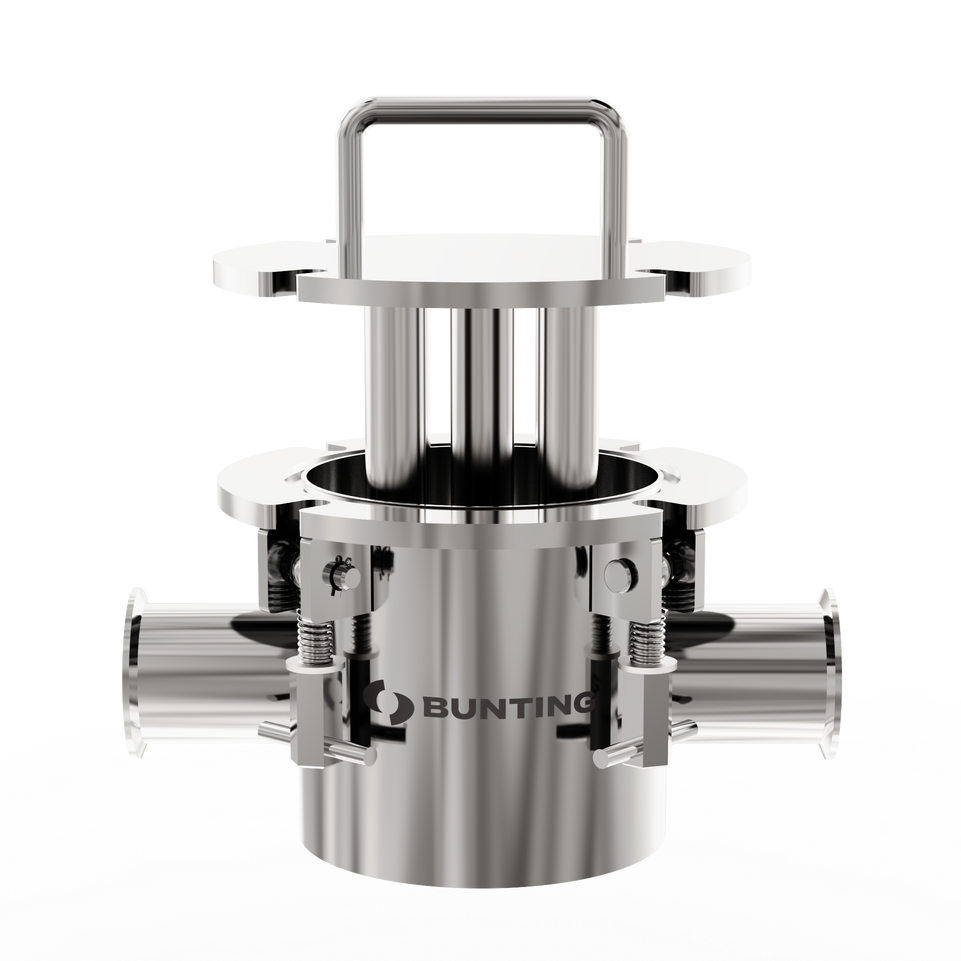

Liquid Magnetic Separator

Liquid Magnetic Separator

Liquid Magnetic Separator

Liquid Magnetic Separator

INDUSTRIES Food, Pharmaceutical, Ceramic
MAGNET Neodymium
STRENGTH 10,000 Gauss & 13 lbs of Pull
PRODUCT Liquids, Pastes, Slurries
MATERIAL 316 Stainless Steel
LINE SIZES 2", 3", 4" (50 mm, 80 mm, 100 mm)*
PRESSURE 10 bars
TEMPERATURE 120 C (248 F)
OPTIONS 150 lb flanges, water jacket, self-cleaning

BENEFITS/OPTIONS

Magnet Strength:  Uses high-intensity neodymium magnets, which are among the strongest available. This allows them to capture even the smallest ferrous particles, including work-hardened stainless steel.


Versatility:  Bunting’s liquid separators are designed to handle a wide range of liquids, from acidic juices to heavy oils and chunky soups.


Construction: The product contact area is designed to meet sanitary standards. The unit is constructed from 316 stainless steel to comply with food safety regulations.


Safety Features:  Includes EPDM (Ethylene Propylene Diene Monomer) gaskets as standard features, enhancing safety, especially in food processing applications.


Self-Cleaning:  The optional self-cleaning feature enhances efficiency and can help extend the product's lifespan.



Liquid Magnetic Separator Options


  • Benefits

    Magnet Strength:  Uses high-intensity neodymium magnets, which  are among the strongest available. This allows them to capture even the smallest ferrous particles, including work-hardened stainless steel.


    Versatility:  Bunting’s liquid separators are designed to handle a wide  range of liquids, from acidic juices to heavy oils and chunky soups.


    Durability: Constructed with 316 stainless steel and complies with food grade regulations


    Safety Features:  Includes EPDM (Ethylene Propylene Diene Monomer) gaskets as standard features, enhancing safety,especially in food processing applications.

  • Options


ABOUT

Bunting's Liquid Magnetic Separators are state-of-the-art devices designed to remove ferrous contaminants from a wide range of liquids, including dairy products, juices, oils, and soups. These separators utilize powerful neodymium magnets, generating a magnetic field strength of 10,000 gauss, to effectively capture both large particles and fine ferrous debris.


The exceptional strength of these separators allows them to remove not only obvious ferrous contaminants but also minute particles and even small amounts of work-hardened stainless steel. This capability ensures superior product purity and safety, particularly crucial in food, pharmaceutical, and ceramic industries.


Constructed with 316 stainless steel, these separators comply with food-grade regulations, making them ideal for use in sensitive production environments. The versatile design allows them to handle various liquids, from acidic juices to heavy oils and chunky soups, adapting to diverse industrial needs.


With features like easy maintenance, energy efficiency, and the option for full automation, Bunting's Liquid Magnetic Separators offer a comprehensive solution for businesses seeking to enhance their product quality and meet stringent safety standards. The availability of controlled tests on laboratory-sized filters further ensures that the separation capabilities meet specific application requirements
